Fast assemble: The installation time of a 20ft or 40ft container takes less than 1 day, and four workers can finish 5 unit/day.
1. Perfect for modular / prefab site offices, cabins, warehouse, villa, toliet, shop, hotel, camp, office.
2. Efficient, low cost designs that can be customized for end user requirements.
3. Easy for low skilled workers to assemble.
4. The light steel frame structure is strong and reliable.

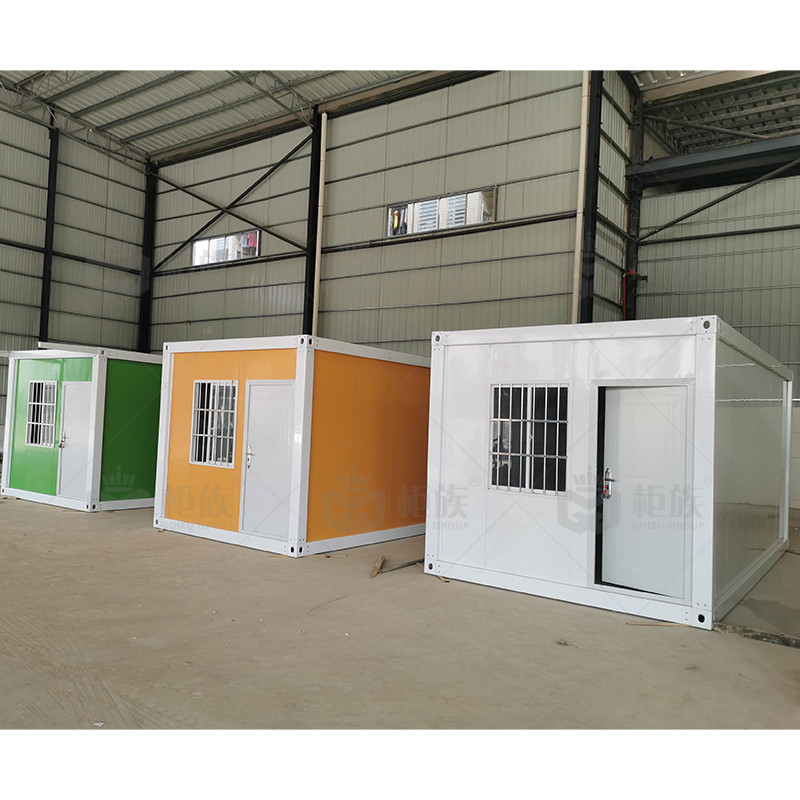

5. Many modular units can be stacked and linked together to create more space.
Item No :
DCH02Order(MOQ) :
5Payment :
Telegraphic TransferProduct Origin :
Guangdong, ChinaColor :
CustomizedLead Time :

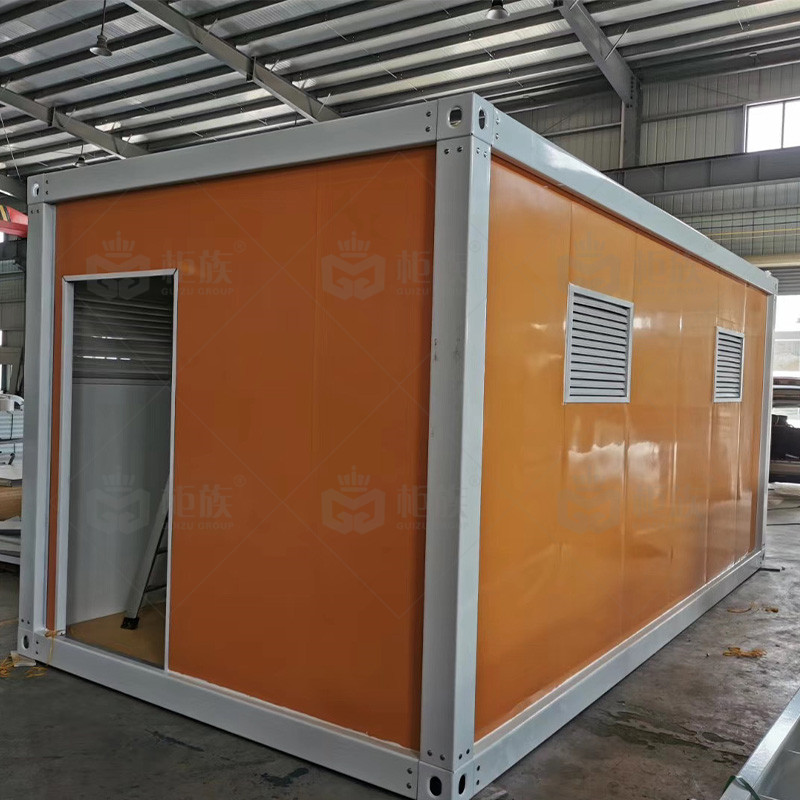

3-15China Supplier Low Cost Detachable Container House
Fast installation：4 workers can install a standard container house within 2 hours
Environment-friendly &Recyclable：It is able to be moved after assembly,which is convenient .
Flexibe combination：Separate independent units can be combined unlimited longitudinally and laterally as required and also the units can be stacked up to 2-3stories high to further enlarge the space and performance funtion.
Worker dormitories usually use fast-installed containers - Detachable Container House. All parts of this type of container are shipped in loose parts, which saves a lot of space.
Steel: Q235B Stainless Steel, 2.3mm
Q235B has certain elongation, strength, good toughness and castability, easy to punch and weld, and is widely used in the
manufacture of general mechanical parts. It is mainly used for welded structural parts with high quality requirements in
construction and bridge engineering.
PRODUCT SPECIFICATION
| Quotation list of Detachable container house | |||||
| No. | Component | Specification | Unit | Quantity | Remarks |
| 1 | Column | 2480*2.3 | Strip | 4 | High of Beam:195MM |
| 2 | Bottom Beam | 5630*2.3 | Strip | 2 | Sink:65MM |
| 3 | Bottom Beam | 2680*2.3 | Strip | 2 | Thickness:2.3MM Hot-dip Galvanized Sheet Profile |
| 4 | Top Beam | 5630*2.3 | Strip | 2 | / |
| 5 | Top Beam | 2680*2.3 | Strip | 2 | / |
| 6 | Corner Piece | 195*165*4 | Piece | 8 | / |
| 7 | Top Platen Slot | 5730*1.2 | Strip | 2 | Galvanized |
| 8 | Top Platen Slot | 2790*1.2 | Strip | 2 | |
| 9 | Corner Fitting | 120*1.2*2530 | Strip | 1 | |
| 10 | Bottom Beam SquareTube | 100*50*2980*1.3 | Strip | 9 | Galvanized |
| 11 | Top Beam SquareTube | 50*50*2800*1.8 | Strip | 2 | Galvanized, with Card Slots On Both Sides |
| 12 | Top Beam SquareTube | 80*40*1880*1.5 | Strip | 3 | Galvanized |
| 13 | Top Beam Square Tube | 60*40**1880*1.5 | Strip | 6 | |
| 14 | Main Frame Bolt | ST100*30 | Piece | 64 | Carriage Bolt |
| 15 | Bottom Beam Bolt | ST100*80 | Piece | 18 | |
| 16 | Floor | 2800*1146*18 | Sheet | 5 | MGO Fireproof Board |
| 17 | Structural Adhesive | Piece | 5 | / | |
| 18 | Ceiling Board | 2788*200*0.3 | Piece | 29 | / |
| 19 | Roof Tile | 2920*950*0.5 | Piece | 6 | / |
| 20 | Roll Felt | 20M | Roll | 1 | / |
| 21 | Hardware | Carton | 1 | / | |
| 22 | Butyl Rubber Strip | M | 12 | / | |
| 23 | Corner Fitting | 38 | Strip | 2 | / |
| 24 | Door | 925*2050 | Piece | 1 | / |
| 25 | Window | 925*1200 | Piece | 2 | / |
| 26 | Board Material | 2560*950*50 | Piece | 15 | 0.276Glass Wool Board |
| 27 | Board Material | 1380*950*50 | Piece | 2 | 0.276Glass Wool Board |
| 28 | Board Material | 460*950*50 | Piece | 1 | 0.276Glass Wool Board |
|
Detachable Container House |
||
|
Name |
Material |
Specification |
|
Structure Frame |
Corner Column |
2480*160*160, T2.3mm |
|
Bottom Main Beam |
5630*160*160, T2.3mm |
|
|
Bottom Short Beam |
2680*160*160, T2.3mm |
|
|
Bottom Purlin |
2990*80*80, T1.2mm |
|
|
2990*40*80, T1.1mm |
||
|
Top Main Beam |
5630*160*160, T2.3mm |
|
|
Top Short Beam |
2680*160*160, T2.3mm |
|
|
Top Purlin |
2800*50*50, T1.5mm |
|
|
1880*40*80, T1.1mm |
||
|
1880*40*60, T1.0mm |
||
|
Corner Fitting |
160*160*4.5mm |
|
|
Water Plate Channel |
5740*130*2.0mm |
|
PRODUCT INSTALLTION

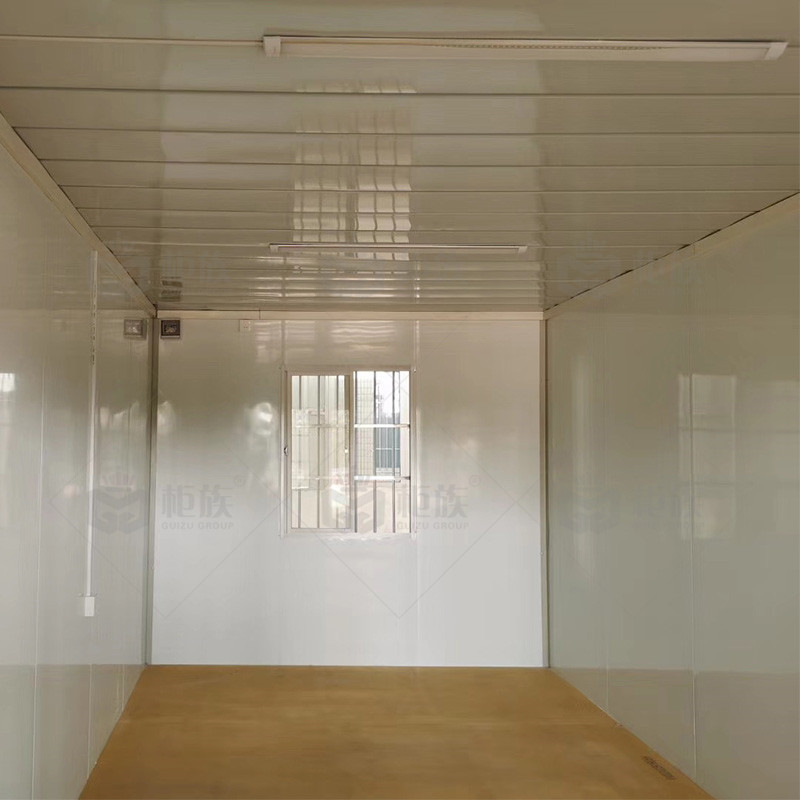

Wall + Floor：Choose high-quality fire and moisture-proof materials
Wall panel: rock wool/glass wool color steel plate.Fire rating: Class A; Moisture-proof rating: Class A
Floor: PVC+glass magnesium board or PVC+cement.It has very good hardness, and it is also a fireproof and moisture-proof material
LAYOUT:

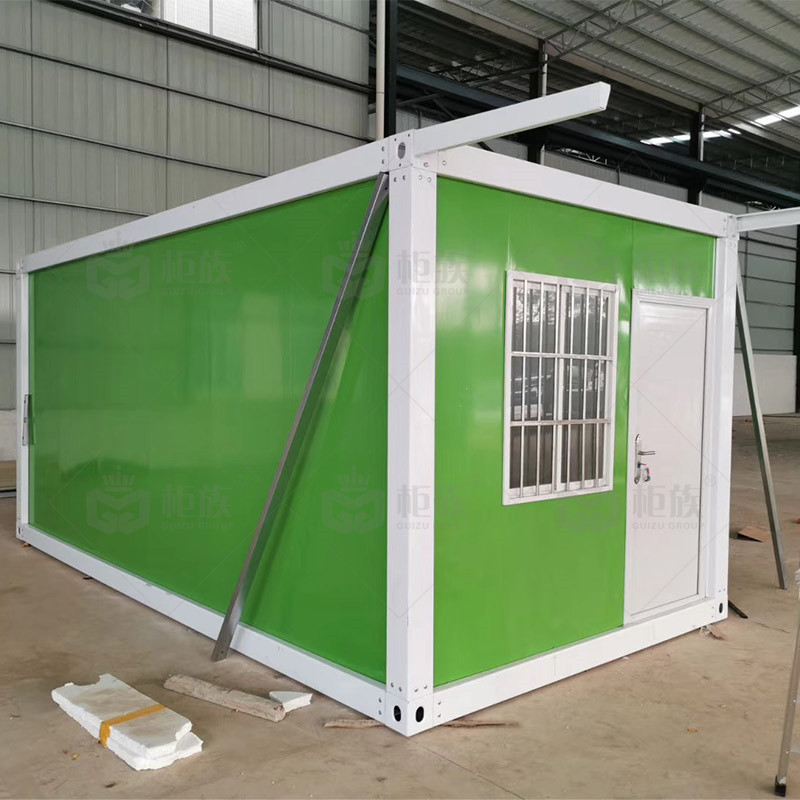

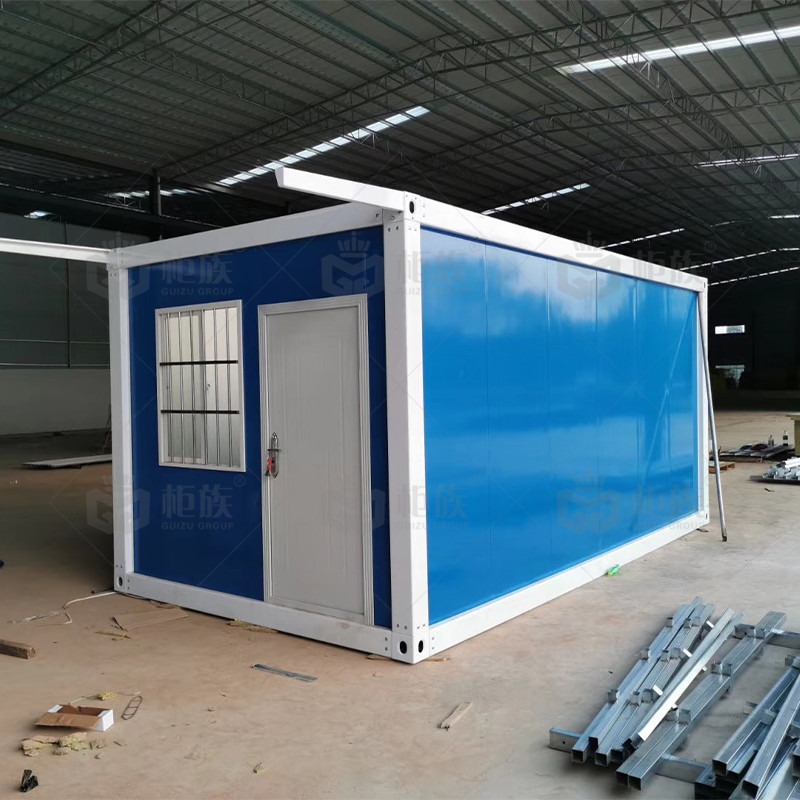

1. General layout: the empty box with two windows, and one door
2. Free layout: change according to customer requirements (design drawings are made according to the type and quantity of personnel)
SUPPORTING FACILITIES
