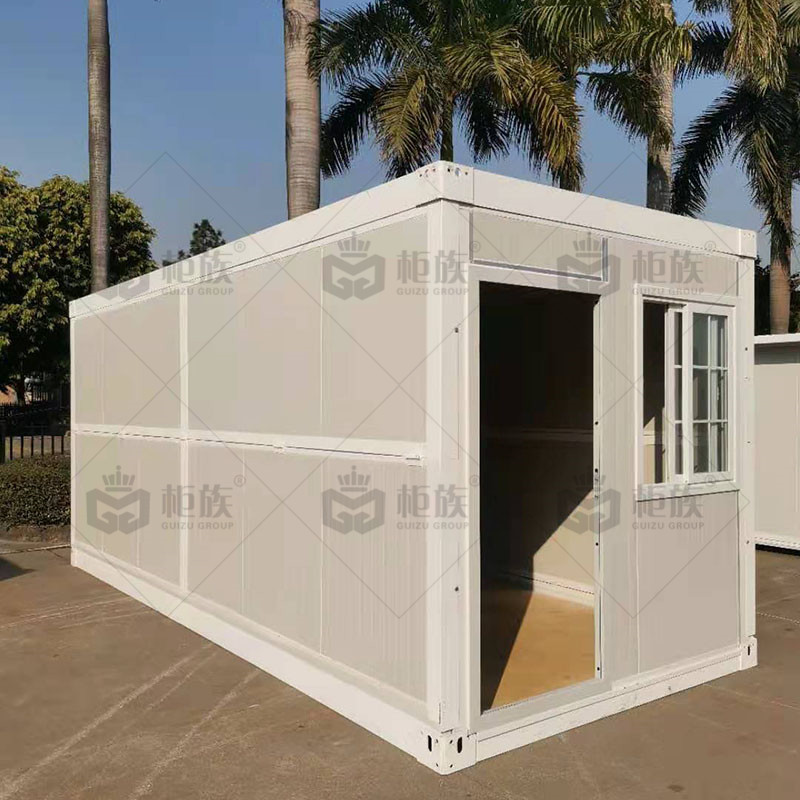

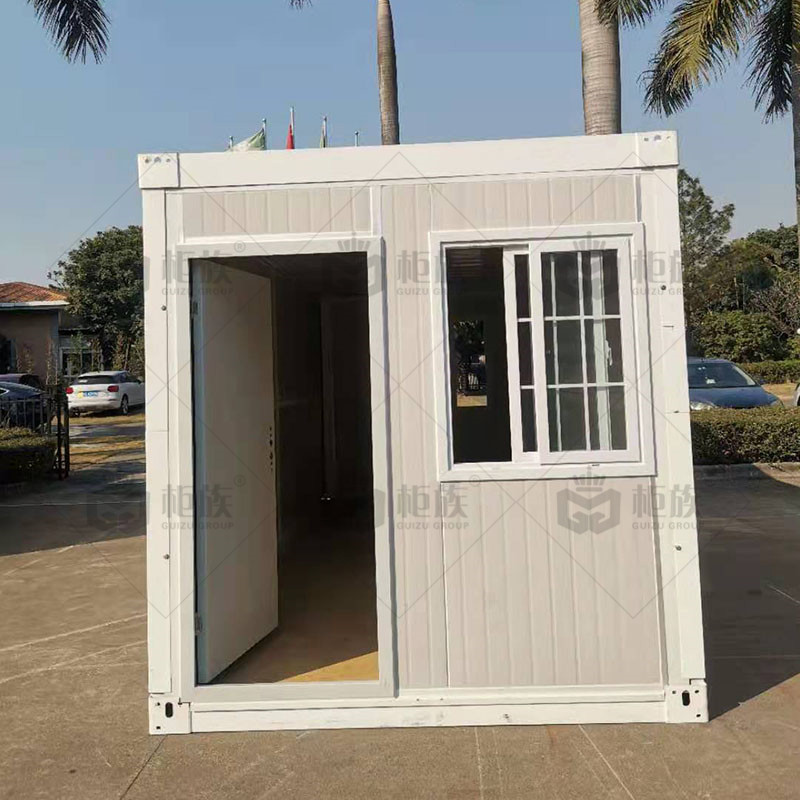

Fast Build Foldable Container House for Sale

This folding container house can be folded repeatedly, recycled, in line with emergency living standards.
It is widely used for labor camp, office, dormitories, and storeroom.

Item No :
FC01
Order(MOQ) :
5
Payment :
Telegraphic Transfer
Product Origin :
China
Color :
Customized
Shipping Port :
Guangzhou/Shenzhen/Foshan
Lead Time :
3-15

Inquiry now

product introduction

Fast Build Foldable Container House For Sale

Product Specification

iguration - Standard Folding Container
Specification	external dimension (mm)	580024802560
	Internal dimension (mm)
	Package dimension (mm)	58002480410
	Weight	≈1300KG
Index	Structural Design Service Life	10 years
	ground live load	200kg/㎡
	roof live load	100kg/㎡
	wind load	Grade 8
	Seismic Fortification Intensity	Grade 10
Main structure	Top frame	Main beam Q235B rectangular square tube
		Secondary beam Q235B rectangular square tube
		Secondary beam Q235B rectangular square tube
	Bottom frame	Main beam Q235B rectangular square tube
		Main beam Q235B rectangular square tube
		Secondary beam Q235B rectangular square tube
	side	Main beam Q235B galvanized P-type pipe
	front and back	Main beam Q235B galvanized P-type pipe
	corner	Q235B thickness 8mm
	folding hinge	Galvanized hinge, high strength
Roof	Integral frame protective coating	Electrostatic spray/straight white plastic powder
	external roof	Galvanized sheet
	interior ceiling	Color steel veneer V831，0.37mm
Wall panel	Insulation glass wool	glass wool roll 50mm
	side wall	0.3/0.3 75mm Thick glass wool composite board
	Front and rear wall panels	0.3/0.3 75mm Thick glass wool composite board
Floor	cement mix floor 15mm
Electrical System	Electrical wiring is installed in strict accordance with moisture-proof specifications, and all electrical products meet CE certification. Connect the circuit according to the circuit engineering specification, indoor: 4² national standard annealed copper wire, 1 32A circuit breaker, 1 three-hole air-conditioning socket, 2.5² socket incoming line, 1 five-hole single-open socket, 1 five-hole socket, 1 LED light
door	High quality anti-theft door (warm white) size: 860mm*1990mm
window	920*920 single glass sliding window plastic steel window with guardrail screen window, glass thickness 4mm

product installation

The production and assembly of all the components of the folding container house are prefabricated at the factory. You can install the Folding House on the job site in just four steps.

1. Use the crane to live its roof. Lift its roof slowly until the house is unfolded and stop the crane there.

2. Expand the front and back walls of the container. Push the front and back from inside, and make it stand in the correct place.

3. Use the bolts to fix the whole structure. There will be premade bolt holes on the columns, and we will provide enough bolts for you to fix them.

4. Install the door lock. To prevent the door lock from damaging the ceiling during the folding process, we will not install the door lock in advance. If you need to move the house to another place and need to fold it, please remember to take down the door lock in advance also.
