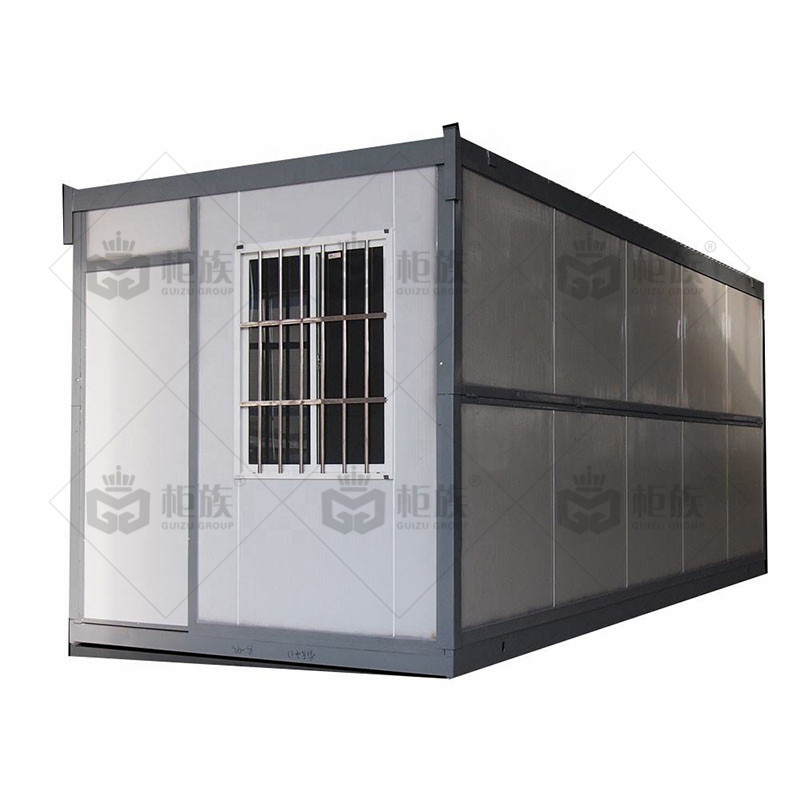

Recycled Prefab Portable Folding Container Homes Affordable Resettlement

The folding container house has the characteristics of foldable, detachable and reusable, which is convenient for relocation and transportation, and can be easily moved to the place where it is needed.

  • Item No :

    FC02
  • Order(MOQ) :

    5
  • Payment :

    Telegraphic Transfer
  • Product Origin :

    China
  • Color :

    Customized
  • Shipping Port :

    Guangzhou/Shenzhen/Foshan
  • Lead Time :

    3-15

Waterproof recycled prefab Portable Container Homes For Affordable Resettlement



The folding container house has a long service life and has excellent durability and wind resistance, earthquake resistance, fire resistance and other properties.








Product Specification

Configuration – Standard Folding Container

Specification

external dimension (mm)

5800*2480*2560

Internal dimension (mm)

5640*2320*2420

Package dimension (mm)

5800*2480*410

Weight

≈1300KG

Index

Structural Design Service Life

10 years

ground live load

200kg/

roof live load

100kg/

wind load

Grade 8

Seismic Fortification Intensity

Grade 10

Main structure

Top frame

Main beam Q235B rectangular square tube

Secondary beam Q235B rectangular square tube

Secondary beam Q235B rectangular square tube

Bottom frame

Main beam Q235B rectangular square tube

Main beam Q235B rectangular square tube

Secondary beam Q235B rectangular square tube

side

Main beam Q235B galvanized P-type pipe

front and back

Main beam Q235B galvanized P-type pipe

corner

Q235B thickness 8mm

folding hinge

Galvanized hinge, high strength

Roof

Integral frame protective coating

Electrostatic spray/straight white plastic powder

external roof

Galvanized sheet

interior ceiling

Color steel veneer V8310.37mm

Wall panel

Insulation glass wool

glass wool roll 50mm

side wall

0.3/0.3 75mm Thick glass wool composite board

Front and rear wall panels

0.3/0.3 75mm Thick glass wool composite board

Floor

cement mix floor 15mm

Electrical System

Electrical wiring is installed in strict accordance with moisture-proof specifications, and all electrical products meet CE certification. Connect the circuit according to the circuit engineering specification, indoor: 4² national standard annealed copper wire, 1 32A circuit breaker, 1 three-hole air-conditioning socket, 2.5² socket incoming line, 1 five-hole single-open socket, 1 five-hole socket, 1 LED light

door

High quality anti-theft door (warm white) size: 860mm*1990mm

window

920*920 single glass sliding window plastic steel window with guardrail screen window, glass thickness 4mm



Folding container houses have the following advantages:

1. Simple structure: the folding container house is composed of steel structure, which is simple and durable, and has low production and construction costs.

2. Space can be adjusted: multiple folding container houses can be connected and combined to form a larger space or more rooms.

3. Environmental protection and energy saving: the folding container house can be powered by green energy such as solar energy to reduce the impact on the environment.

4. Safety and anti-theft: The folding container house has a solid structure and good sealing performance, and is equipped with an anti-theft system for doors and windows, which improves safety.



Interior design



product installation

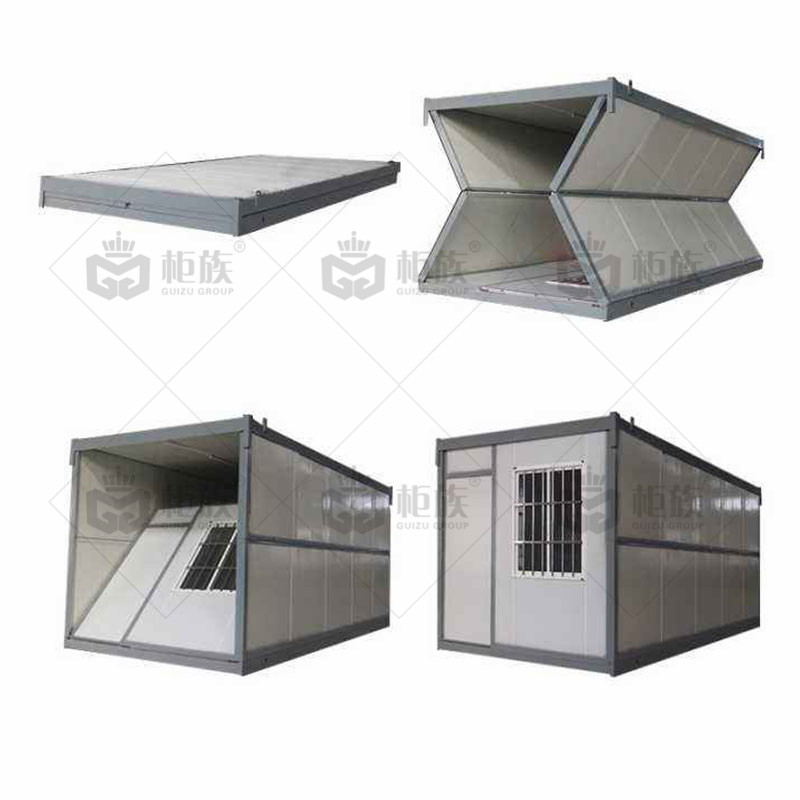

The production and assembly of all the components of the folding container house are prefabricated at the factory. You can install the Folding House on the job site in just four steps.

1. Use the crane to live its roof. Lift its roof slowly until the house is unfolded and stop the crane there.

2. Expand the front and back walls of the container. Push the front and back from inside, and make it stand in the correct place.

3. Use the bolts to fix the whole structure. There will be premade bolt holes on the columns, and we will provide enough bolts for you to fix them.

4. Install the door lock. To prevent the door lock from damaging the ceiling during the folding process, we will not install the door lock in advance. If you need to move the house to another place and need to fold it, please remember to take down the door lock in advance also.



Supporting Facilities
