Space-saving: the folding container can be folded into a flat surface and takes up less space. It can be folded when not in use for easy storage and transport.
Economical and practical: the folding container has a long service life, strong durability, relatively low cost, and is more economical and practical.
Item No :
FC02Order(MOQ) :
5Payment :
Telegraphic TransferProduct Origin :
ChinaColor :
CustomizedShipping Port :
Guangzhou/Shenzhen/FoshanLead Time :

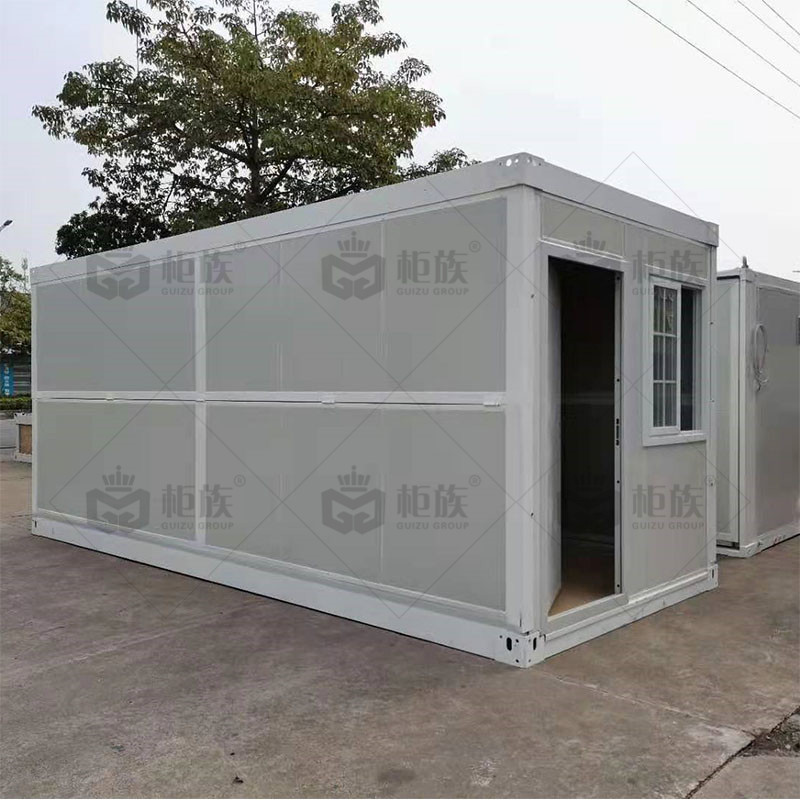

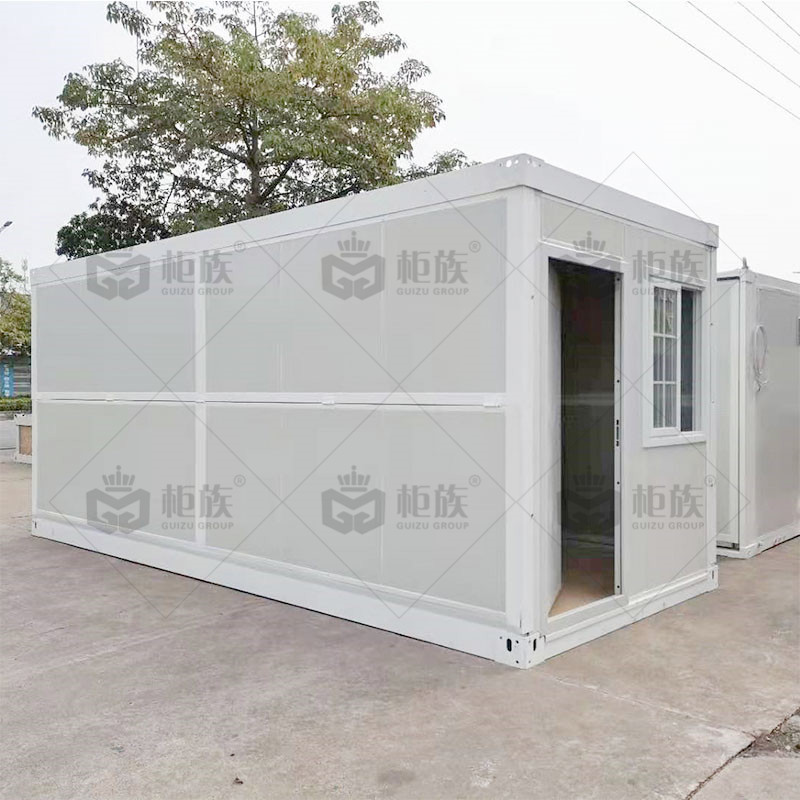

3-15Quake-ready Portable 20ft 40ft folding container house for Affordable Resettlement
Guizu Quake-ready Portable Container Homes provide safe and affordable temporary housing solutions for resettlement purposes, Its basic structure is composed of some foldable containers.
Product Specification
Configuration - Standard Folding Container |
||
Specification |
external dimension (mm) |
5800*2480*2560 |
Internal dimension (mm) |
5640*2320*2420 |
|
Package dimension (mm) |
5800*2480*410 |
|
Weight |
≈1300KG |
|
Index |
Structural Design Service Life |
10 years |
ground live load |
200kg/㎡ |
|
roof live load |
100kg/㎡ |
|
wind load |
Grade 8 |
|
Seismic Fortification Intensity |
Grade 10 |
|
Main structure |
Top frame |
Main beam Q235B rectangular square tube |
Secondary beam Q235B rectangular square tube |
||
Secondary beam Q235B rectangular square tube |
||
Bottom frame |
Main beam Q235B rectangular square tube |
|
Main beam Q235B rectangular square tube |
||
Secondary beam Q235B rectangular square tube |
||
side |
Main beam Q235B galvanized P-type pipe |
|
front and back |
Main beam Q235B galvanized P-type pipe |
|
corner |
Q235B thickness 8mm |
|
folding hinge |
Galvanized hinge, high strength |
|
Roof |
Integral frame protective coating |
Electrostatic spray/straight white plastic powder |
external roof |
Galvanized sheet |
|
interior ceiling |
Color steel veneer V831,0.37mm |
|
Wall panel |
Insulation glass wool |
glass wool roll 50mm |
side wall |
0.3/0.3 75mm Thick glass wool composite board |
|
Front and rear wall panels |
0.3/0.3 75mm Thick glass wool composite board |
|
Floor |
cement mix floor 15mm |
|
Electrical System |
Electrical wiring is installed in strict accordance with moisture-proof specifications, and all electrical products meet CE certification. Connect the circuit according to the circuit engineering specification, indoor: 4² national standard annealed copper wire, 1 32A circuit breaker, 1 three-hole air-conditioning socket, 2.5² socket incoming line, 1 five-hole single-open socket, 1 five-hole socket, 1 LED light |
|
door |
High quality anti-theft door (warm white) size: 860mm*1990mm |
|
window |
920*920 single glass sliding window plastic steel window with guardrail screen window, glass thickness 4mm |
Folding container houses have the following advantages:
1. Flexibility: The folding container house can be quickly assembled and disassembled according to the needs, so that it can be used in different places and occasions.
2. Save time and cost: Compared with traditional construction, folding container houses can be built faster and therefore cost less.
3. Durability: Due to the use of high-strength steel, folding container houses are more durable than traditional buildings and can withstand greater pressure and wind.
4. Wide range of applications: Folding container houses can be used for various purposes such as accommodation, offices, warehouses, medical stations, restaurants, shops and schools.
5. Environmental protection and energy saving: the folding container house can use renewable energy, so that the energy consumption is less and the impact on the environment is reduced.
6. Security: The folding container house is designed with fire resistance, waterproof and anti-theft, making it safer.

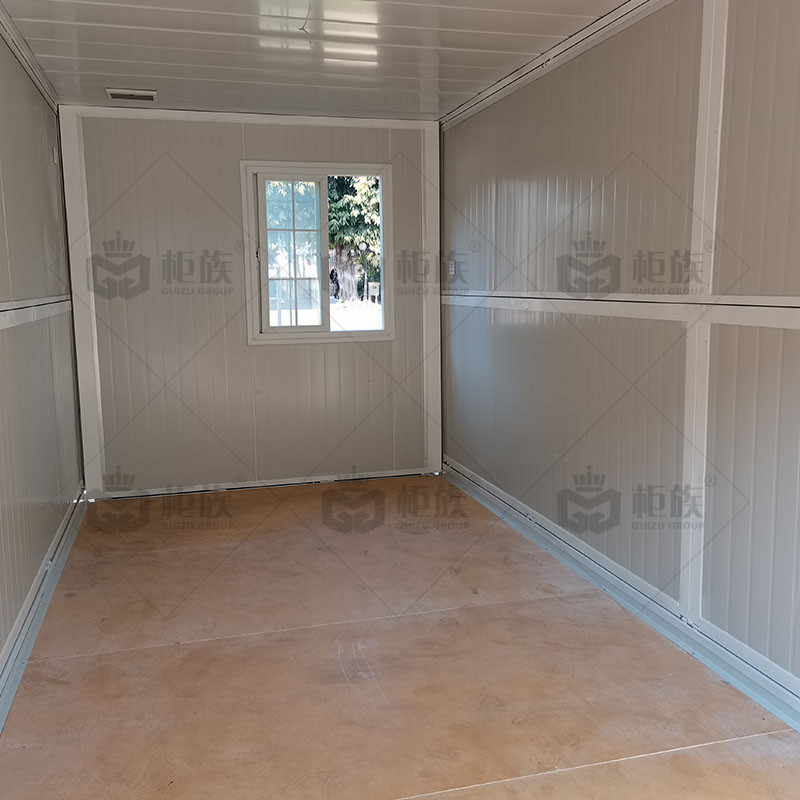

Interior design
product installation

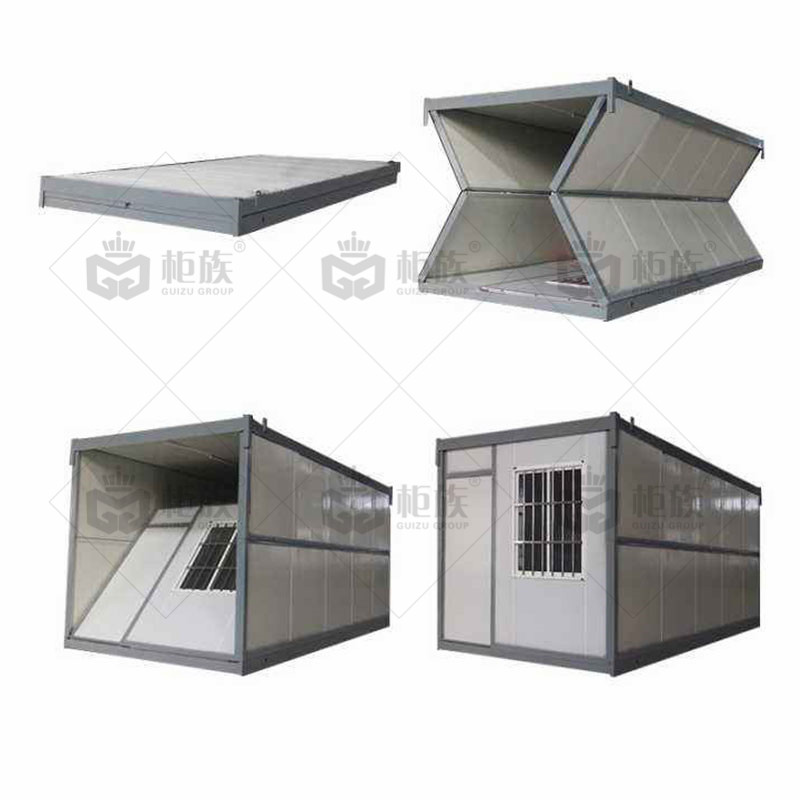

The production and assembly of all the components of the folding container house are prefabricated at the factory. You can install the Folding House on the job site in just four steps.
1. Use the crane to live its roof. Lift its roof slowly until the house is unfolded and stop the crane there.
2. Expand the front and back walls of the container. Push the front and back from inside, and make it stand in the correct place.
3. Use the bolts to fix the whole structure. There will be premade bolt holes on the columns, and we will provide enough bolts for you to fix them.
4. Install the door lock. To prevent the door lock from damaging the ceiling during the folding process, we will not install the door lock in advance. If you need to move the house to another place and need to fold it, please remember to take down the door lock in advance also.
Supporting Facilities
