T-Shaped Mining Camp House Miner's Prefabricated Accommodation

The T-shaped mining camp house is a temporary construction product built by a building system composed of a light steel structure as the floor load-bearing foundation, making full use of the strength of sandwich panels and roof panels, and through effective connection methods.















  • Item No :

    PTC
  • Order(MOQ) :

    1
  • Payment :

    Telegraphic Transfer
  • Product Origin :

    China
  • Color :

    Customized
  • Shipping Port :

    Guangzhou/Shenzhen/Foshan
  • Lead Time :

    3-15

T-Shaped Mining Camp House Miner's Prefabricated Accommodation



The T-shaped mining camp adopts a modular design. Compared with the K type house, the indoor and outdoor rooms are more neat and beautiful, the space layout is more flexible, and the airtightness and sound insulation performance are better. It can be widely used in the fields of engineering camps, government resettlement, large-scale competitions and temporary housing for various commercial activities.







Product Specification



Item No.

Component

specification

1

Wall Panel

50 Double Color-coated Steel EPS Sandwich Board
(steel:0.286mm,EPS density :10kg)

2

Roof Title

50 Double Color-coated Steel EPS Sandwich Board
(steel:0.286mm,EPS density :10kg)

3

Partition wall

50 Double Color-coated Steel EPS Sandwich Board
(steel:0.286mm,EPS density :10kg)with aluminum Slot and accessories

4

Column

Double C-shaped Steel Size:80*40*1.8mm

5

Roof Beam

C-Shaped Steel Size:80*40*1.8mm & 50*40*1.8mm

6

Tie Rod

φ8

7

Ground Beam

Double C-shaped Steel Size:80*40*1.6mm

8

Round Beam

Double C-shaped Steel Size:80*40*1.6mm

9

Roof Purlin

Galvanized Angel Steel:1.5mm

10

Door

50mm Double Colored-coated steel EPS Sandwich Door Size:800*2000mm

11

Window

plastic steel window:1740*925mm



Easy to Install





Product advantages

Compared with the K type house, the biggest difference is that the tie rods and columns are not visible from the exterior. There is no size limitation on the outside, and the internal layout is relatively more flexible. The cost is also a bit more expensive than the K room. Of course, you can also adjust the design cost and plan of the entire project according to your budget.

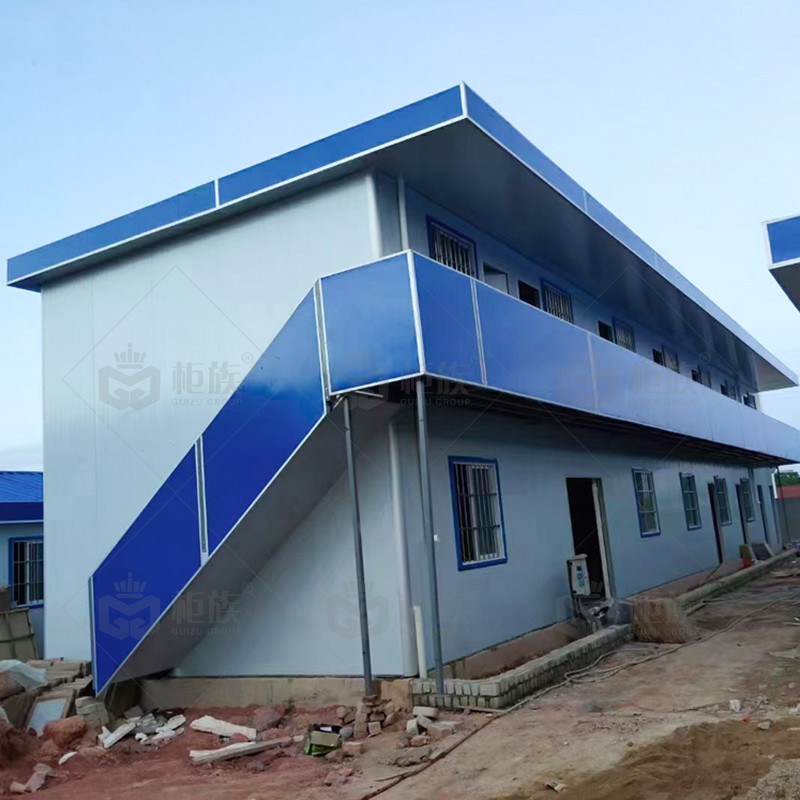

The same as the K house, the roof can also be single slope, double slope, four slopes, etc. It can also be built with two floors.

The foundation is treated in the same way as the K house, and needs to be poured locally with cement.

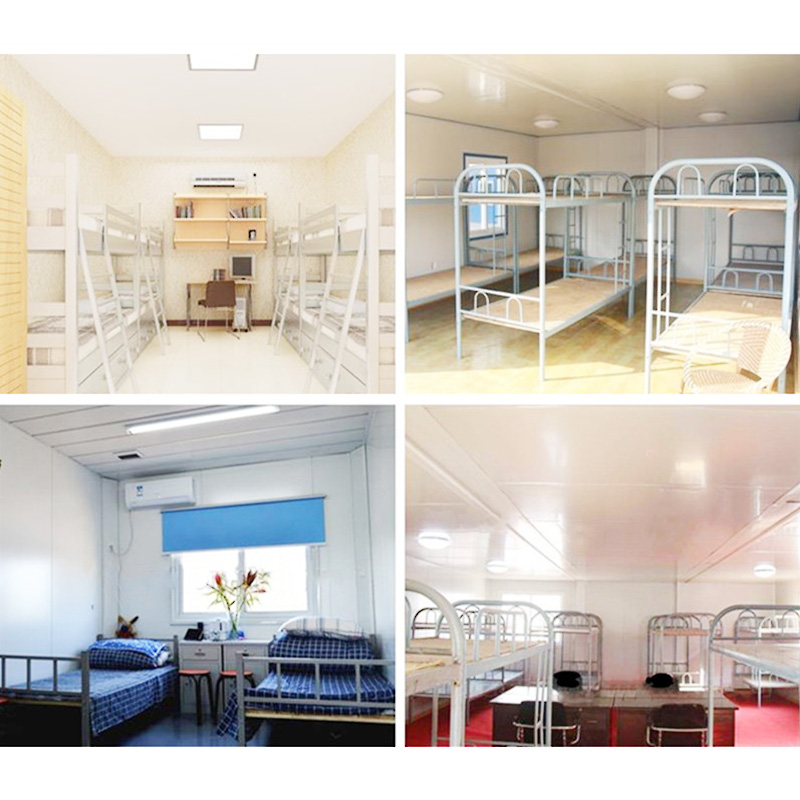

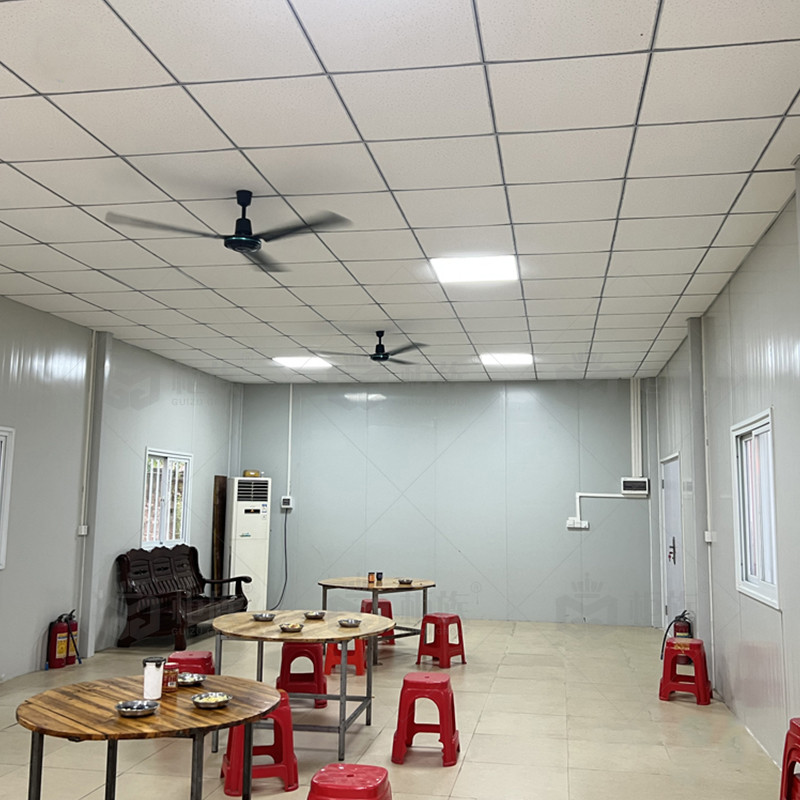

The following is a case of one of our T type mining camp. The area of a single house is only 48 square meters. There are a total of 1,000 sets with a double slope on one floor. It is also our most common case. There are dormitories, kitchens, toilets, living rooms, and ceilings. After installation You can move in directly after moving the furniture in.
